Why API access is only the beginning of a reliable instrumentation data pipeline.
Instrumentation systems are becoming more open.
Instrument manufacturers, data acquisition platforms, monitoring applications, and digital twin providers increasingly offer APIs for moving data between their systems. This is a meaningful improvement for an industry that has historically depended on proprietary formats, isolated software, and manual exports.

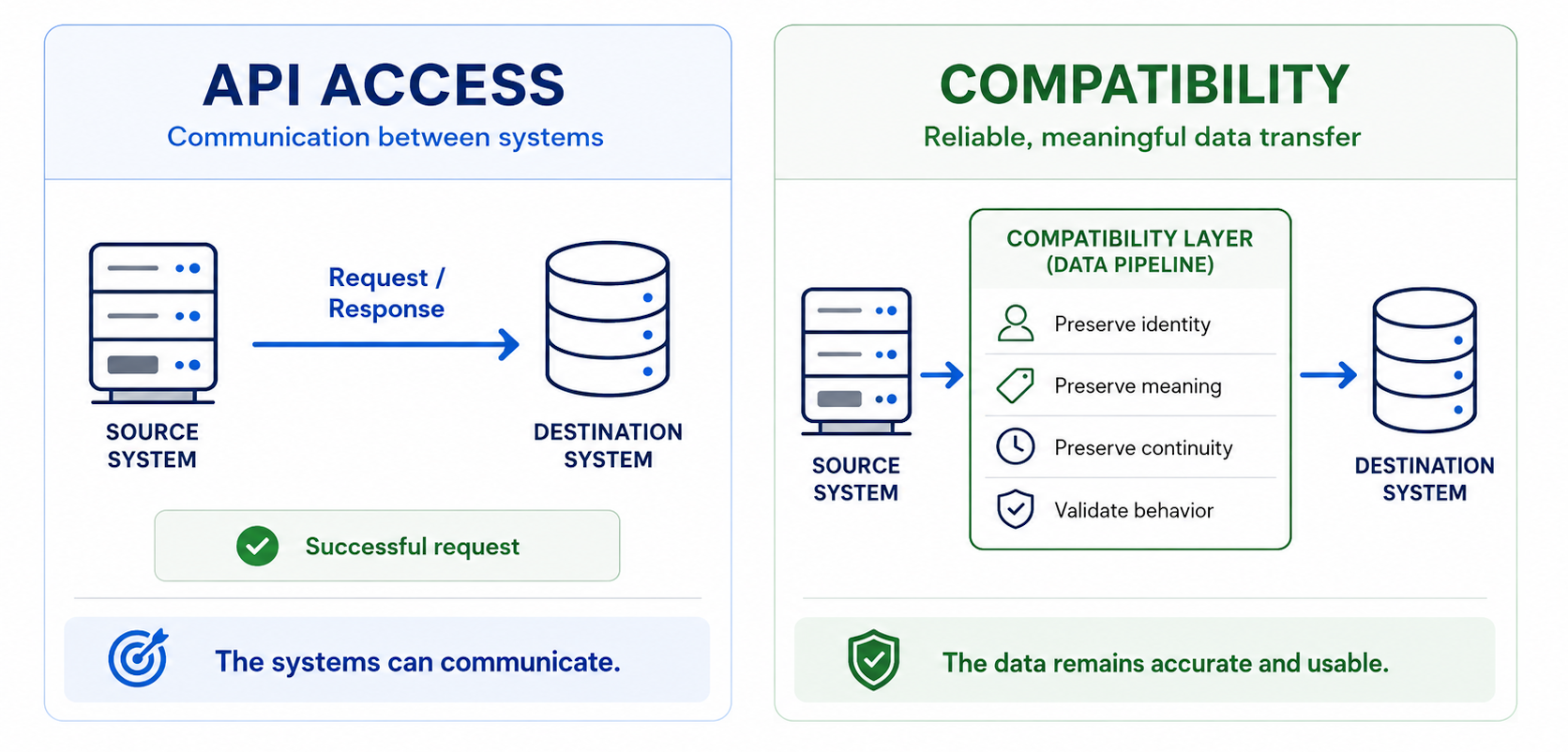

But an API does not automatically make two systems compatible.
An API defines how software can send a request and receive a response. A working integration has to do more. It has to preserve the identity, meaning, and continuity of the data while moving it between systems that were not necessarily designed to work together.
API access makes data available.
Compatibility makes that data usable.
API Access Solves One Part of the Problem
API documentation usually explains how to authenticate, which endpoints are available, what parameters are accepted, and what a valid response looks like.
That is enough to establish communication between two systems. It is not enough to establish a reliable data pipeline.
Once data begins moving, additional questions appear:
- How is an instrument identified over time?
- Is the timestamp local or UTC?
- Is the requested start time inclusive or exclusive?
- What happens if the same time range is requested twice?
- How are new sensors or channels represented?
- Are missing readings omitted, returned as null, or represented by another value?
- Does an empty response mean there is no new data, or that something failed?
These details determine whether the integration transfers data correctly.
A request can return a successful response while still producing duplicate devices, missing readings, incorrect units, or observations associated with the wrong sensor.
The endpoint worked. The integration did not.

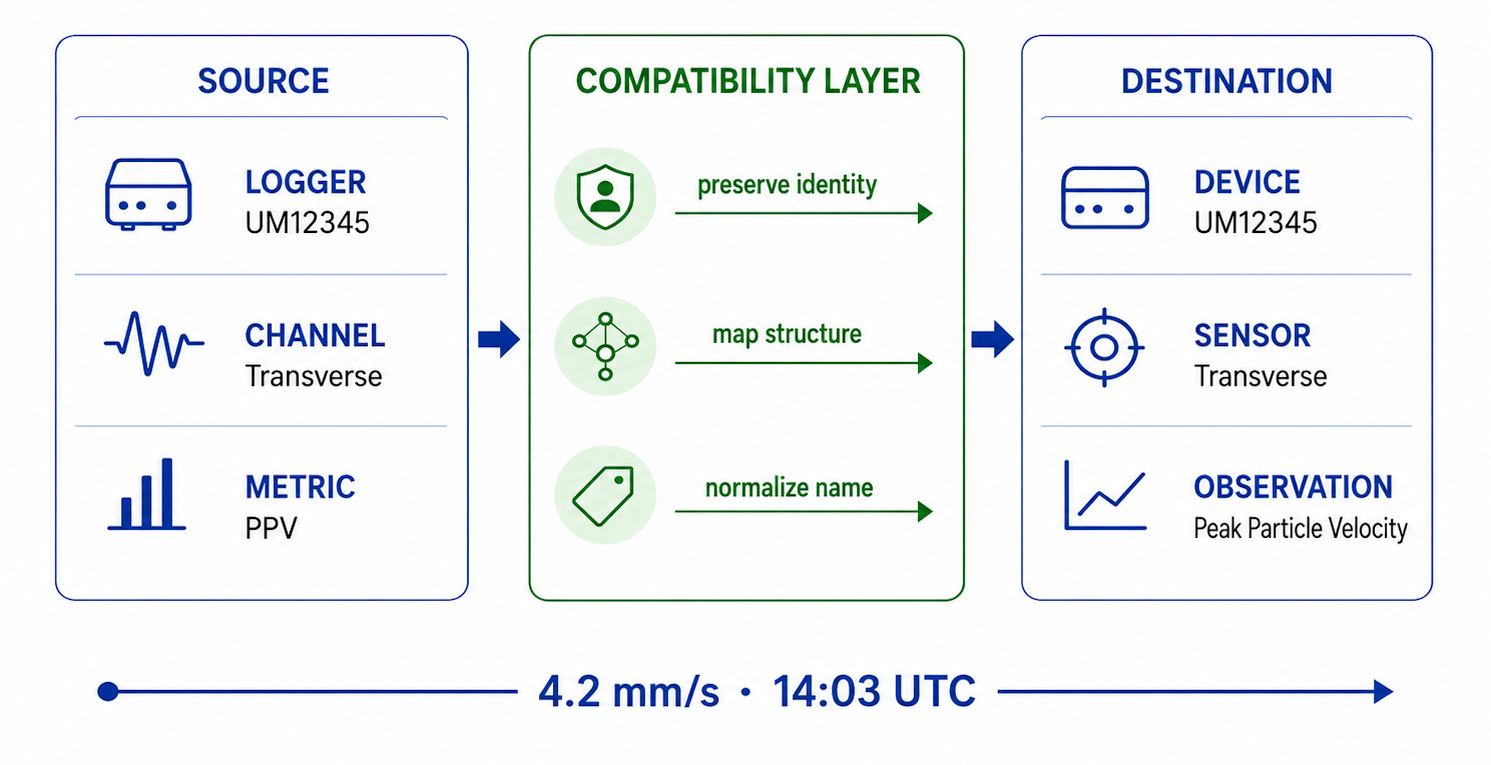

Data Has to Retain Its Meaning
Instrumentation data rarely follows one standard structure.
One platform may organize information by project, logger, channel, and metric. Another may expect devices, sensors, observation types, and units. A third may treat every data series as its own independent object.
The same measurement can also be represented differently between systems.
Velocity may be reported in millimeters per second or inches per second. Temperature units may appear as C, °C, or another vendor-specific value. A vibration metric may use one name in the source system and a different name in the destination.
An integration has to reconcile those differences without changing what the reading means.
That requires preserving the relationship between:
- The physical instrument
- The logger or acquisition device
- The sensor or channel
- The metric being measured
- The unit of measure
- The observation timestamp
- The project, asset, or location
This context matters as much as the numeric value itself.
Sending 4.2 from one platform to another is easy. Determining whether 4.2 represents millimeters per second, inches per second, degrees Celsius, volts, or something else is the actual integration problem.
Incorrectly mapped data may still look valid once it reaches a dashboard. That can make translation errors harder to identify than obvious pipeline failures.
Reliable integrations need to validate more than whether a value is present. They need to confirm that the value still means the same thing after it reaches the destination.

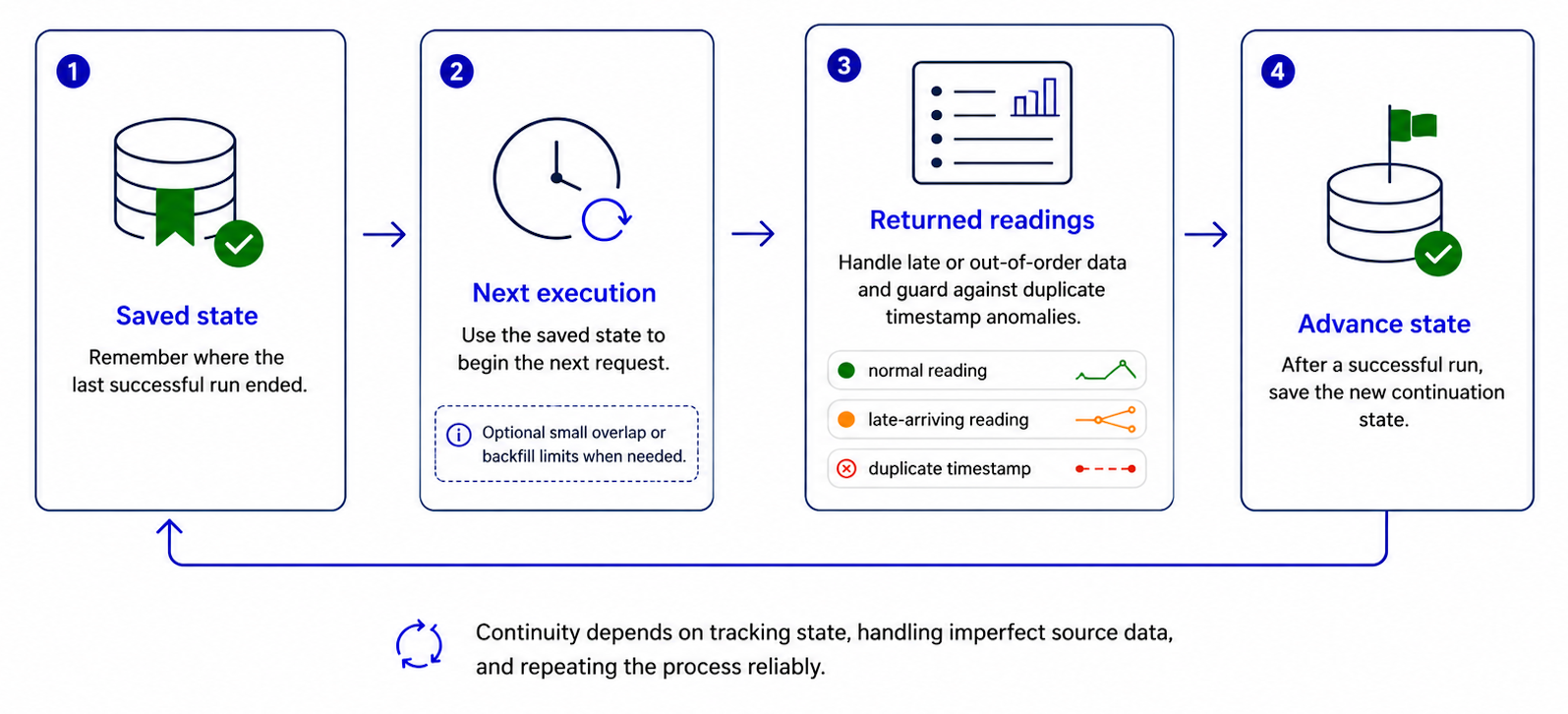

Reliable Integrations Preserve Continuity
Monitoring pipelines do not run once. They operate repeatedly over the life of a project.
Each execution has to know where the previous execution stopped, which readings were already processed, and where the next request should begin.
Without that state, the pipeline risks missing delayed readings or repeatedly sending the same observations.
This becomes more complicated when data does not arrive in perfect chronological order. A logger may upload readings late because of a temporary network outage. An API may paginate large time ranges. A platform may limit the number of readings returned in one request.
A reliable integration has to account for those conditions.
It may need to request a small amount of overlapping history, compare the returned data against what was already processed, and remove duplicates before continuing. It also needs limits that prevent a large backfill from creating an uncontrolled number of API requests.
The systems connected to the pipeline can change as well.
A technician may connect a new sensor to an existing logger. A project may begin collecting an additional metric. A destination platform may assign permanent identifiers after creating a device or sensor. Authentication credentials may expire. A vendor may add fields to an API response or change how an optional value is represented.
A static connector may continue running while silently ignoring these changes.
For example, an integration may discover a logger during initial setup and create the corresponding device and sensors in the destination. If an additional sensor is connected later, the integration has to recognize that the source configuration changed.
It then has to:
- Identify the new sensor.
- Confirm that it does not already exist in the destination.
- Create it without duplicating the existing device.
- Save the identifier assigned by the destination.
- Route future readings to that identifier.
Without this process, the pipeline may continue appearing healthy while the new sensor’s data is never transferred.
Compatibility has to survive change, not only initial setup.
Documentation Is Not Validation
API documentation is necessary for building an integration, but it cannot describe every device configuration, account structure, or production dataset.
An integration can follow the documented API contract and still encounter unexpected behavior when connected to a real account.
Optional fields may be missing. Projects may contain more devices than expected. Data arrays may not align consistently. Empty datasets may behave differently from populated datasets. A logger may expose metrics that were not included in sample responses.
This is why implementation and validation are separate stages.
Implementation confirms that the integration follows the published documentation.
Validation confirms that it works with representative instruments, configurations, and data.
A successful authentication request does not validate device discovery. Successful device discovery does not validate data retrieval. Successful data retrieval does not confirm that units, timestamps, identities, and metrics are mapped correctly.
Each part of the integration has to be tested against realistic behavior.
This is also why test accounts, sandbox environments, sample loggers, and representative datasets are valuable when developing an integration. They expose conditions that cannot be confirmed from documentation alone.
An integration can be technically complete before it is operationally proven.
Those are not the same state.

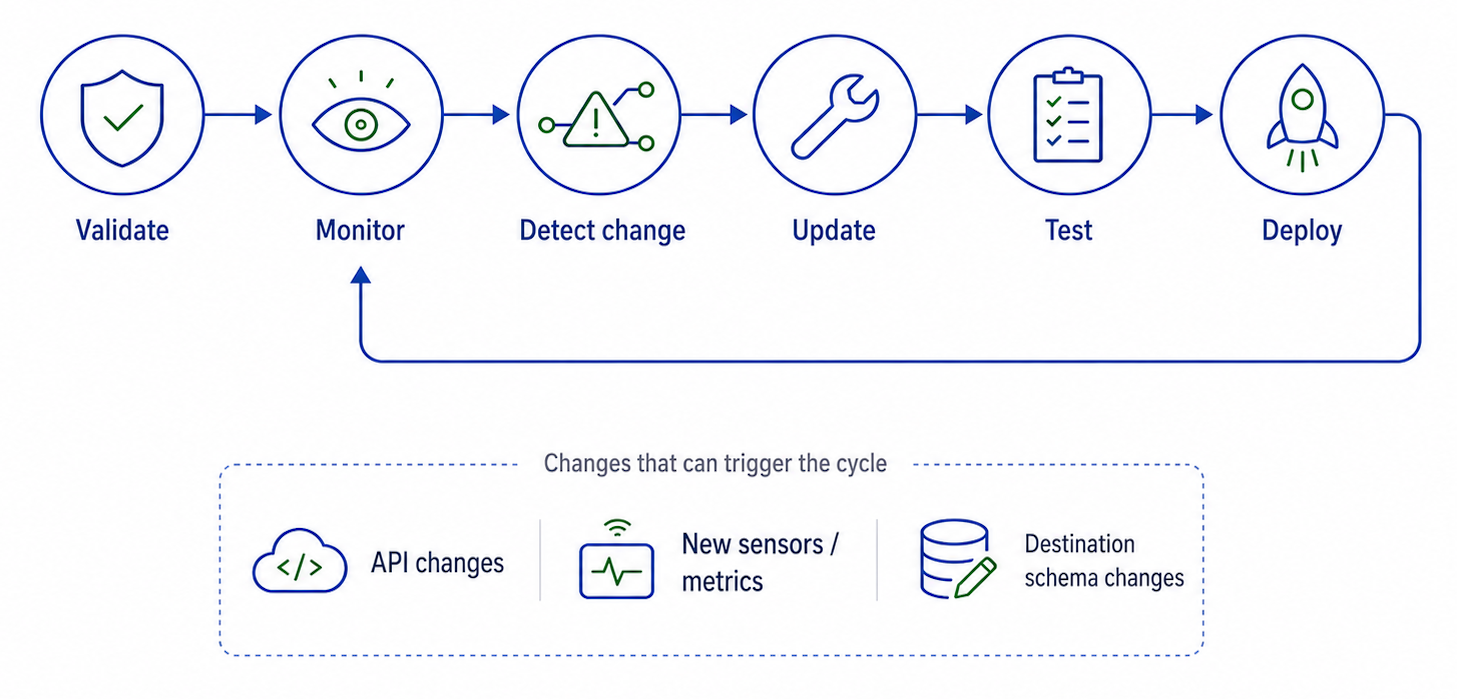

Compatibility Requires Ongoing Ownership
Even after an integration has been validated, it is not permanently finished.
APIs evolve. Authentication requirements change. Instruments receive firmware updates. New sensors and metrics are introduced. Destination platforms revise their schemas. Customer configurations expose combinations that were not present during initial development.
Someone has to own the connection between those systems.
That includes monitoring failures, investigating unexpected data, coordinating with vendors, updating the integration, testing the change, and deploying it without disrupting existing pipelines.
Without ongoing ownership, custom integrations become technical debt.
They continue working under the exact conditions they were originally built for, but become increasingly fragile as the surrounding systems change.
The first successful API request proves that two systems can communicate.
It does not prove that they will continue communicating accurately six months or three years later.
Compatibility Is Infrastructure
The instrumentation industry is moving in the right direction.
More vendors are making their data accessible and supporting connections with third-party systems. Open APIs create the foundation needed for broader interoperability.
The next step is treating compatibility as infrastructure instead of a one-time development task.
That means translating data without losing its meaning, maintaining stable identities, preserving continuity between executions, detecting configuration changes, validating against representative systems, and maintaining the integration throughout its lifecycle.
IMSURGE was built around that responsibility.
The goal is not simply to make one API communicate with another. It is to keep instrumentation data moving accurately and predictably between the systems that collect it and the platforms where it is used.
True compatibility is not demonstrated by the first successful request.
It is demonstrated by every reliable reading that follows.
